/ 100G Optical Transceivers

Cube Technology Trading’s 100G transceiver series is engineered to enhance data connectivity for both Data Center Interconnections and Metro Networks, ensuring fast, stable, and efficient data transmission across various applications. With the growing demand for higher network capacity, these solutions provide a reliable way to scale infrastructure without compromising performance.

Each transceiver solution is built on Cube Technology Trading’s cutting-edge optoelectronic integration technology, enabling high-speed data transmission while significantly reducing the size and power consumption compared to traditional designs. This combination of performance and efficiency makes our 100G transceivers an ideal choice for businesses aiming to optimize their networks for future growth.

QSFP28 AOC (Breakout inside)

QSFP28 AOC (Breakout inside) - Features:

Wide and diverse customizing: Fiber Jacket color, Cable Length (up to 100m), Identification/Logo on Cable, Box package, Temperature range (up to industrial), Support DDM function, Easy cabe tracking , Reliable VCSEL and PIN photonic devices, Commercial and Industrial operating temperature optional

Application

25G 100G Ethernet, Data Center, InfiniBand 12xQDR/FDR, Fibre Channel, SAS/SATA, PCIe

Ask an Expert

SPECIFICATIONS

Part No.	Data Rate	Reach	Wavelength	Transmitter	Receiver	Temperature	Application
cubett	103.1	1m - 100m	850nm	VCSEL	PIN	0~70℃	Datacenter, HPC, Core Rout.
cubett	4x25.78	1m - 100m	850nm	VCSEL	PIN	0~70℃	Datacenter, HPC, Core Rout.

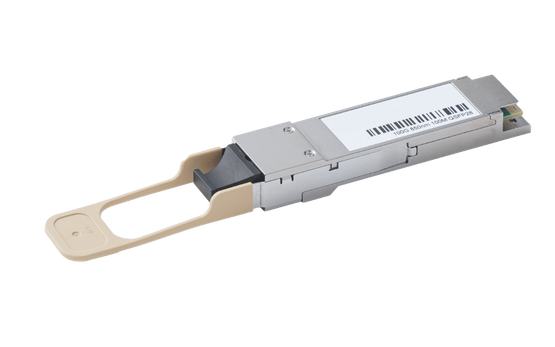

QSFP28 SR4

QSFP28 SR4 - Features:

Distance up to 300m on OM4 MMF

Low power dissipation: Less than 2W Typical

Quad 25G CDR, auto by-pass at 40G application

Application

100G Ethernet

Data Center

Ask an Expert

SPECIFICATIONS

Part No.	Data Rate	Reach	Wavelength	Transmitter	Receiver	Interface	Temperature	Application
cubett	103.1	100m	850nm	VCSEL	PIN	MPO	0~70℃	100G BASE-SR4
cubett	103.1	300m	850nm	VCSEL	PIN	MPO	0~70℃	100G BASE-eSR4
cubett	41.2/103.1	100m	850nm	VCSEL	PIN	MPO	0~70℃	100GBASE-SR4/40G

QSFP28 CWDM4/ PSM4

QSFP28 CWDM4/ PSM4 - Features:

4 x 25Gb/s CWDM transmitter

4 channels PIN photo detector

Power consumption less than 3.5W

Up to 2km on SMF

Single +3.3V power supply

Application

100GBASE-CWDM4/PSM4 Ethernet links

Data Center

Ask an Expert

SPECIFICATIONS

Part No.	Data Rate	Reach	Wavelength	Transmitter	Receiver	Interface	Temperature	Application
cubett	103.1	2km	1271nm, 1291nm, 1311nm, 1331nm	CWDM DFB	PIN	LC	0~70℃	100G BASE-CWDM4
cubett	103.1	500m	1310nm	1310nm DFB	PIN	MPO	0~70℃	100G Base -PSM4

QSFP28 LR4

QSFP28 LR4 - Features:

4 cooled 25Gb/s channels LAN WDM DFB TOSA

4 channels PIN photo detector

Power consumption less than 3.5W

Up to 10km on SMF

Single +3.3V power supply

Application

100GBASE-LR4 Ethernet links

Data Center

Ask an Expert

SPECIFICATIONS

Part No.	Data Rate	Reach	Wavelength	Transmitter	Receiver	Interface	Temperature	Application
cubett	103.1	10km	1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm	LAN WDM DFB	PIN	LC	0~70℃	100G BASE-LR4
cubett	103.1	2km	1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm	LAN WDM DFB	PIN	LC	0~70℃	100G Base -LR4 Lite

QSFP28 ER4/ZR4

QSFP28 ER4/ZR4 - Features:

4 cooled 25Gb/s channels LAN WDM EML TOSA

4 channels SOA+PIN photo detector

Power consumption less than 6.5W

Up to 40km on SMF without FEC, 80km with FEC

Single +3.3V power supply

Application

100GBASE-ER4 Ethernet links

100GBASE-ZR4 Ethernet links

Data center

Ask an Expert

SPECIFICATIONS

Part No.	Data Rate	Reach	Wavelength	Transmitter	Receiver	Interface	Temperature	Application
cubett	103.1~111.8	40km	1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm	LAN WDM EML	SOA+PIN	LC	0~70℃	100G BASE-ER4
cubett	103.1~111.8	80km	1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm	LAN WDM EML	SOA+PIN	LC	0~70℃	100G BASE-ZR4

QSFP28 ER4Lite

QSFP28 ER4Lite - Features:

4 cooled 25Gb/s channels LAN WDM EML TOSA

4 channels APD photo detector

Power consumption less than 4.5W

Up to 30km on SMF without FEC, 40km with FEC

Single +3.3V power supply

Application

4WDM-40

100GBASE ER4L Ethernet links

Data center

Ask an Expert

SPECIFICATIONS

Part No.	Data Rate	Reach	Wavelength	Transmitter	Receiver	Interface	Temperature	Application
cubett	103.1~111.8	30km	1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm	LAN WDM EML	APD	LC	0~70℃	100G BASE ER4L; 4WDM-40

QSFP28 ER1

QSFP28 ER1 - Features:

Single cooled 100Gb/s channels LWDM EML TOSA

Power consumption less than 4.5W

Single channels PIN photo detector

Up to 40km on SMF

Application

100G Ethernet

Data Center

Ask an Expert

SPECIFICATIONS

Part No.	Data Rate	Reach	Wavelength	Transmitter	Receiver	Interface	Temperature	Application
cubett	106.25 Gb/s	40km	1309nm	EML	APD	LC	0~70℃	100G BASE-ER1

QSFP28 DR

QSFP28 DR - Features:

Single cooled 100Gb/s channels EML TOSA

Power consumption less than 4.0W

Single channels PIN photo detector

Up to 500m on SMF

Application

100G Ethernet

Data Center

Ask an Expert

SPECIFICATIONS

Part No.	Data Rate	Reach	Wavelength	Transmitter	Receiver	Interface	Temperature	Application
cubett	106.25 Gb/s	500m	1311nm	EML	PIN	LC	0~70℃	100G BASE-DR

QSFP28 FR1

QSFP28 FR1 - Features:

Single cooled 100Gb/s channels EML TOSA

Power consumption less than 4.0W

Single channels PIN photo detector

Up to 2km on SMF

Application

100G Ethernet

Data Center

Ask an Expert

SPECIFICATIONS

Part No.	Data Rate	Reach	Wavelength	Transmitter	Receiver	Interface	Temperature	Application
cubett	106.25 Gb/s	2km	1311nm	EML	PIN	LC	0~70℃	100G BASE-FR1

QSFP28 LR1 (non-hermetic)

QSFP28 LR1 (non-hermetic) - Features:

Single cooled 100Gb/s channels EML TOSA

Power consumption less than 4.0W

Single channels PIN photo detector

Up to 10km on SMF

Application

100G Ethernet

Data Center

Ask an Expert

SPECIFICATIONS

Part No.	Data Rate	Reach	Wavelength	Transmitter	Receiver	Interface	Temperature	Application
cubett	106.25 Gb/s	10km	1311nm	EML	PIN	LC	0~70℃	100G BASE-LR1
