/ 1.6T Optical Transceivers

Cube Technology Trading's 1.6T optical transceivers feature two advanced architecture solutions: OSFP-XD and OSFP1600. These modules are available with traditional EML designs as well as innovative TFLN-based technology to meet the evolving demands of modern networks. Fully compliant with OSFP MSA standards, our 1.6T modules are designed for high-performance applications in Ethernet networks, data centers, and cloud infrastructures.

These cutting-edge transceivers offer both versatility and scalability, making them ideal for organizations looking to future-proof their network infrastructure. By integrating the latest advancements in optical technology, Cube Technology Trading ensures that our products meet the growing demand for faster, more efficient data transmission.

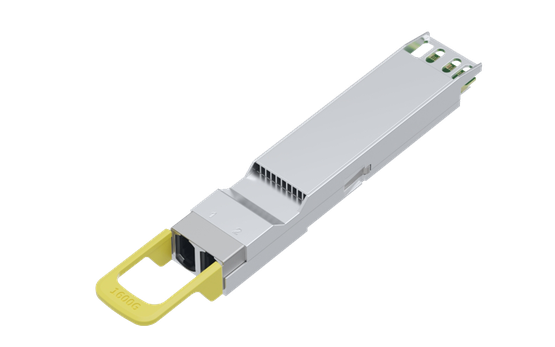

1.6T OSFP-XD 2DR4

1.6T OSFP-XD 2DR4 - Features:



16×100G electrical and 8×200G optical

Cooled EML TOSA, PIN photo detector

Power dissipation less than 30W

Up to 500m on SMF



Application

1.6T-DR8

AI/Data Center Networking



Ask an Expert

SPECIFICATIONS

Part No. Data Rate Reach Wavelength Transmitter Receiver Interface Temperature Application
 cubett  8*200 500m  1311nm  EML  PIN  Dual MPO-12  0~70  1.6T-DR8

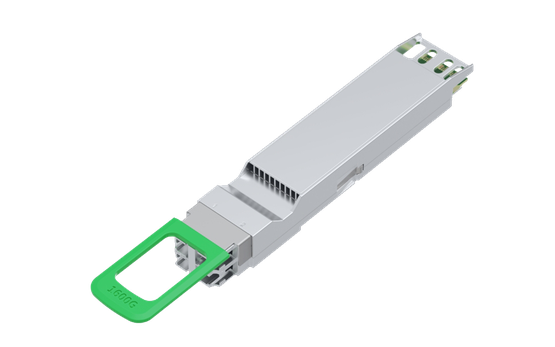

1.6T OSFP-XD 2FR4

1.6T OSFP-XD 2FR4 - Features:



16×100G electrical and 8×200G optical

Cooled EML TOSA, PIN photo detector

Power dissipation less than 30W

Up to 500m on SMF



Application

1.6T-2FR4

AI/Data Center Networking



Ask an Expert

SPECIFICATIONS

Part No. Data Rate Reach Wavelength Transmitter Receiver Interface Temperature Application
 cubett  8*200 2km  CWDM  EML  PIN  Dul mini LC  0~70 1.6T-2FR4
 cubett  8*200 2km  CWDM  EML  PIN  Dul Duplex LC  0~70 1.6T-2FR4

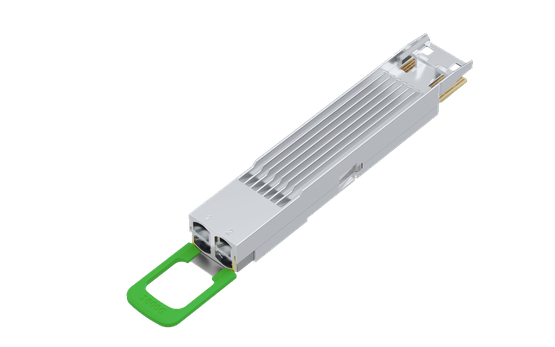

1.6T OFSP1600 2DR4

1.6T OFSP1600 2DR4 - Features:



8×200G electrical and 8×200G optical

Cooled EML TOSA, PIN photo detector

Power dissipation less than 30W

Up to 500m on SMF



Application

1.6T-DR8

AI/Data Center Networking



Ask an Expert

SPECIFICATIONS

Part No. Data Rate Reach Wavelength Transmitter Receiver Interface Temperature Application
 cubett  1600 500m  1311nm  EML  PIN  Dual MPO-12  0~70  1.6T-DR8

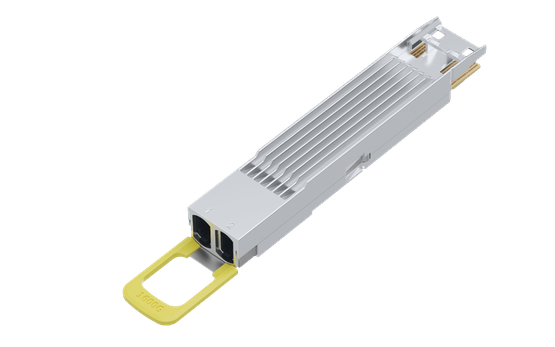

1.6T OSFP1600 2FR4

1.6T OSFP1600 2FR4 - Features:



8×200G electrical and 8×200G optical

Cooled EML TOSA, PIN photo detector

Power dissipation less than 30W

Up to 2km on SMF



Application

1.6T-2FR4

AI/Data Center Networking



Ask an Expert

SPECIFICATIONS

Part No. Data Rate Reach Wavelength Transmitter Receiver Interface Temperature Application
 cubett  1600 2km  CWDM  EML  PIN  Dul mini LC  0~70 1.6T-2FR4
 cubett  1600 2km  CWDM  EML  PIN  Dul Duplex LC  0~70 1.6T-2FR4

1.6T OSFP1600 2DR4 LRO

1.6T PSFP1600 2DR4 LRO - Features:



Retimed Tx and linear Rx

8×200G electrical and 8×200G optical

Cooled EML TOSA, PIN photo detector

Power dissipation less than 20W

Up to 500m on SMF



Application

1.6T-DR8

AI/Data Center Networking



Ask an Expert

SPECIFICATIONS

Part No. Data Rate Reach Wavelength Transmitter Receiver Interface Temperature Application
 cubett  1600 500m  1311nm  EML  PIN  Dual MPO-12  0~70 AI/Data Center Networking
